Steel Decking Sheet
- Base metal thickness: 0.80 mm - 2.0 mm
- Yield Strength: 240 Mpa to 550 Mpa
- Dimensional tolerance: As per IS-277-2003 (Av. of measurements)
- Material: Cold Rolled Steel (As per IS 513)
Galvanized Steel (As per IS 277)
Colour Coated Steel (As per IS 14246-95)
Steel Decking Sheet Range
Cold Rolled Steel Decking Sheet
Galvanised Steel Decking Sheet
Colour Coated Steel Decking Sheet

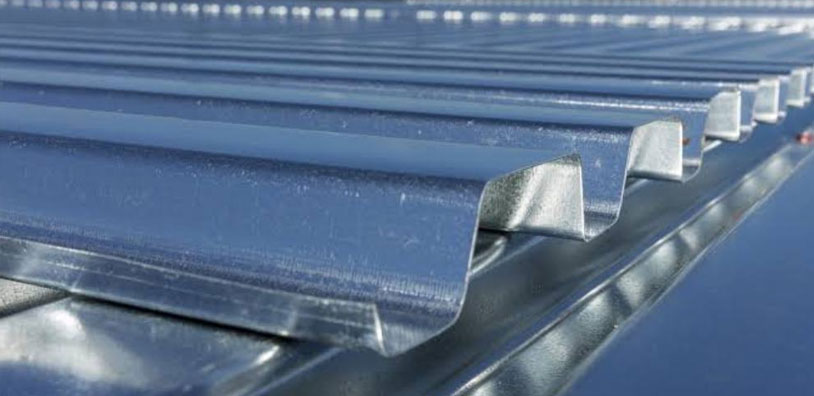

Metal decking profile sheet is used in consturction of steel building material and mezzanine floor. which is widely used and appricated product by Builders,Contractors and fabricators.The decking sheet product is enormously increasing in todays Building solutions.
Our range of steel decking profiles made out of Plain Cold Rolled (CR) steel, Galvanized Steel (GP), and Colour Coated Steel (CCS) with yield strength ranging between 240 to 550 Mpa.

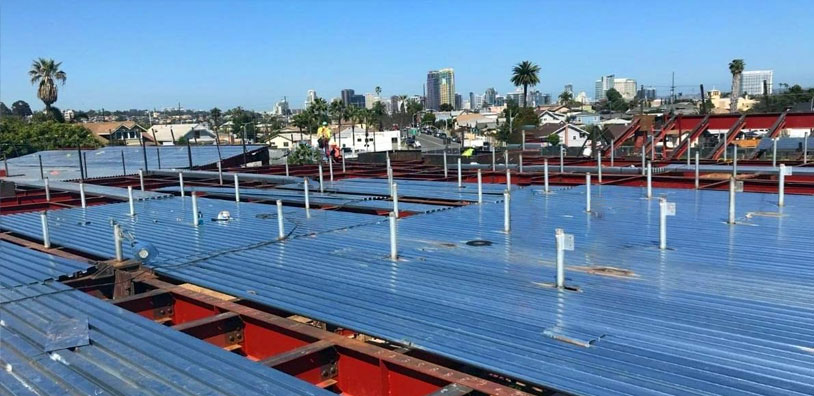

Roof Decking range offers a variety of metal thickness (0.50 mm to 1.00mm) profile and finish to meet differing requirements regarding span, insulation, water proofing, imposed load, and any other considerations.- It can be used as a permanent structural support member for slab.

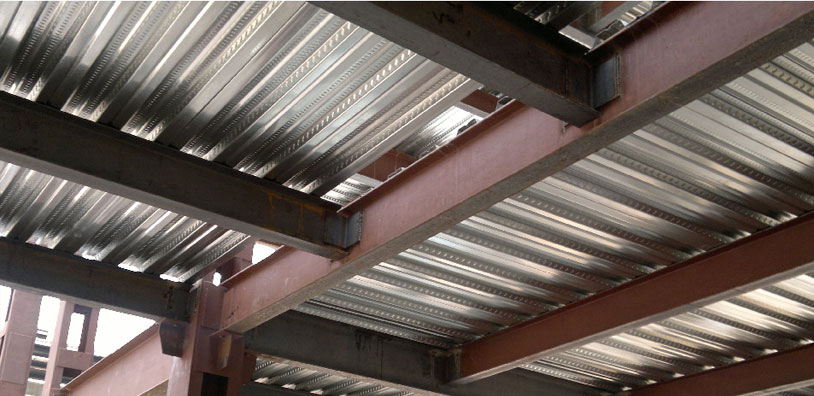

- Mezzanine Floors
- Bridges
- Complex Malls
- High Rise Buildings
- Power Industries
Profile 1 |
|
|---|---|
| Input Width | 1220 mm ± 20 mm |
| Overall Width | 960 mm ± 10 mm |
| Effective Width | 910 mm |
| Pitch | 130 mm |
| Depth | 44 mm |
Profile 2 |
|
|---|---|
| Input Width | 1220 mm ± 10 mm |
| Overall Width | 960 mm ± 10 mm |
| Effective Width | 920 mm ± 5 mm |
| Pitch | 230 mm |
| Depth | 51 mm |
Profile 3 |
|
|---|---|
| Input Width | 1220 mm ± 20 mm |
| Overall Width | 915 mm ± 5 mm |
| Effective Width | 915 mm ± 5 mm |
| Pitch | 305 mm |
| Depth | 76 mm |
Shatter
Resistance
Light
Weight
Size
Flexibility
Environmental
Friendly
Excellent Light
Diffusion
Corrosion
Resistant
Excellent Weather
Resistance
Fast-to-Install
No Ingress of
Rain Water
