Clip Lok Profile Sheet

  • Surface Treatment:
    Color Coated
  • Thickness:
    0.50 to 0.70mm
  • Color:
    Any Color
  • Material:
  • Minimum Roof Slope:
    2° but can be used for 1°

Clip Lok Sheets Range

Aluminium Coated Clip Lok Profile Sheet

Zinc Alloy Coated Clip Lok Profile Sheet

  • Description
  • Applications
  • Technical Properties
  • Advantages

Clip Lok Profile is a strong, durable, versatile, and long-length roof. It combines the strength of steel with smart fluted pans and a lock-action rib design. Even for roof pitches as low as 20 where no ends laps are used, the interlocking ribs, together with concealed fastening, ensure weather resistance. It is designed particularly for low-pitch roof application. Clip Lok Profile is a screwless roof with unmatched performance.

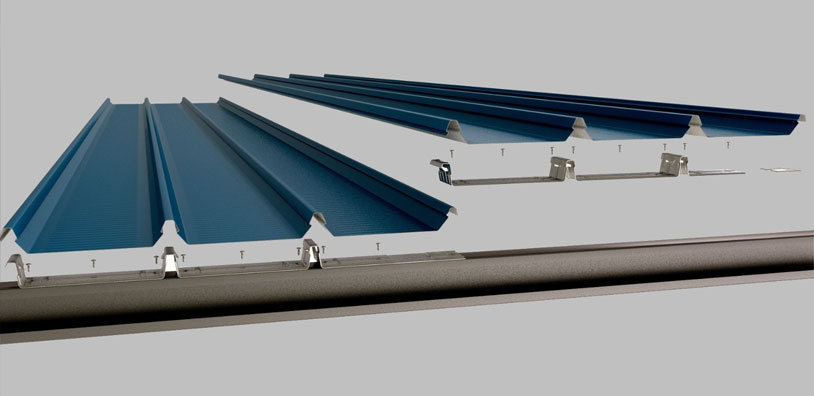

Clip lock sheets is designed to be fastened to roof purlins or wall girts with fixing clips which are concealed during fixing and do not require any fastening holes through the steel sheets. The double capillary break design of the interlocking mechanism of adjoining sheets ensures the prevention of ingress of rainwater by capillary action. As the side lap contact area of the profile is minimal and is well ventilated, trapped moisture cannot remain and the danger of overlap corrosion is eliminated. From security point of view as fasteners are concealed, roof sheets cannot easily be removed from outside.

Any roofing installation performance and durability is deeply rainwater, the anti capillary groove ensures that water draining through valleys do not creep into the overlap.


  • Swift installation
  • Free from rust
  • Durable in nature
  • Industrial Roofing
  • Warehouse
  • Terrace Coverings

Technical Specifications of Zinc Alloy Coating

Combination 99% Zinc
Material Galvanised
Coating Mass Z 120 GSM
Base Metal High Tensile Steel
Yield Strength 240/550 Mpa
Total Coated Thickness 0.47 mm - 0.60 mm

Technical Specifications of Aluminium Alloy Coating

Combination 55% Alu, 43.5% Zinc a 1.5% Silicon
Material Gal Calume - ASTMA 792 M
Coating Mass AZ 150/200





Excellent Light


Excellent Weather


No Ingress of
Rain Water

Durable & Long
