FRP Gratings
Features
Anti-skid top surface- Dimensional stability
- Easy to handle, store & Install
- Total elimination of maintenance cost
- Corrosion resistant and fire retardant
- UV stabilised
- Excellent electrical insulation properties
- Low thermal conductivity
- Suitable for horizontal & vertical layouts
- Self extinguishable with high level of safety
- Excellent temperature & weathering properties
FRP Grating Types

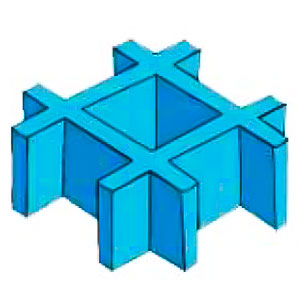

Molded Gratings
Pultruded Gratings
“Rooffit” FRP Grating as compared with other floor materials like Metal, PVC or RCC, provides a series of benefits, unmatched superior impact resistance, while the strength-weight ratio is only one-fourth of that of steel gratings. Hence FRP gratings are easy to handle, cut and install and can be customized to customer’s requirements as per site condition, utility application and weathering conditions.
“Rooffit” FRP Gratings is the ideals solution for corrosion problem faced in industrial environments. The FRP grating is non-conductive of electricity and non-magnetic, great appearance, ease of installation and Maintenance Free.

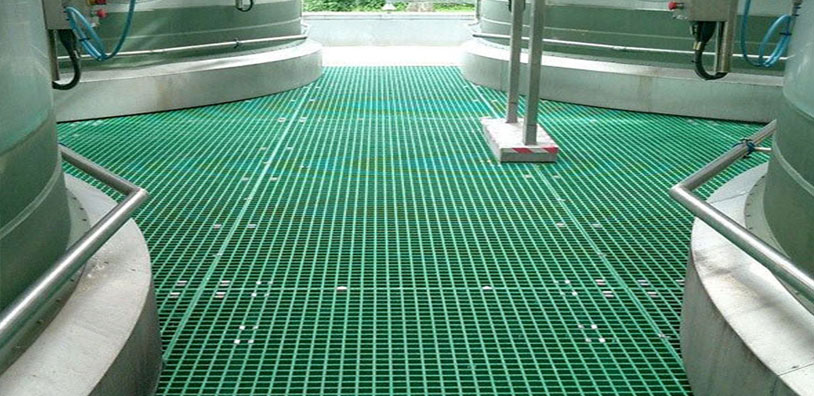

Flooring- Trench & Drain Covers

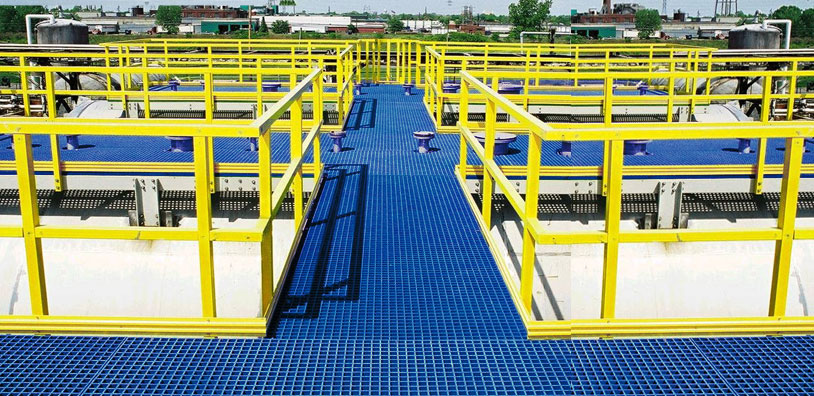

- Platforms & Walkways
- Electrical Cable Trays
- Stairways, Hand Rails & Ladders
- Chemical Pipelines Carriage Trays
- FRP Cross Arms for Electric Applications
- All Load Bearing Structures using FRP Pipe, Angle, Channel & Girders
“Rooffit” FRP Gratings is the ideals solution for corrosion problem faced in industrial environments. The FRP grating is non-conductive of electricity and non-magnetic, great appearance, ease of installation and Maintenance Free.
No Data Available
| S.No. | Grating Style | Thickness/Depth (mm) | Mesh (mm) Grid Size | Max Panel Size (mm) | Bar Thickness (up / down) mm | Weight(kg/m2) | Open Area (%) |
|---|---|---|---|---|---|---|---|
| 1. |  |
25 | 38 x 38 | 1220 x 3660 | 7/5 | 12.6 | 68-70 |
| 2. |  |
38 | 38 x 38 | 1220 x 3660 | 7/5 | 19.5 | 66-68 |
| 3. |  |
50 | 50 x 50 | 1220 x 3660 | 7/5 | 23.43 | 68-70 |
| 4. |  |
25 | 25 x 100 | 1220 x 3660 | 8/6 | 15.5 | 66-68 |
| 5. | |
38 | 38 x 152 | 1220 x 3660 | 7/5 | 15.13 | 72-74 |
Low Thermal Conductivity
UV Stablized
Anti Skid Top Surface
Dimensional Stability
Excellent Electrical Insulation Properties
Suitable for Horizontal & Vertical Layouts
Easy to Handle, Store & Installation
Maintenance Free
Excellent Weather Resistant
Minimal Distortion & Higher Mechanical Strength
