FRP Rain Water Gutter

“Why FRP Rain Water Gutter ?” The conventional Rain water Gutter which were made with 0.5 – 3.0 mm thick M.S G.I Sheet are prone to corrosion, don’t have proper sealing systems on joints therefore, under harsh and extreme weather conditions becomes the weak point for water leakages, corrosion in Gutters which in result damage capital intensive machinery and affecting the Continuous Production Process.
Whereas FRP Rain Water Gutter System which is made from composite material fiberglass in a matrix of thermosetting resin with step jointing module for leak proof gutters and M.S strips embedded at desired spacing to form a single casted tough laminate with smooth glossy finish inside the gutter in desired color for easy and smooth drainage of water.

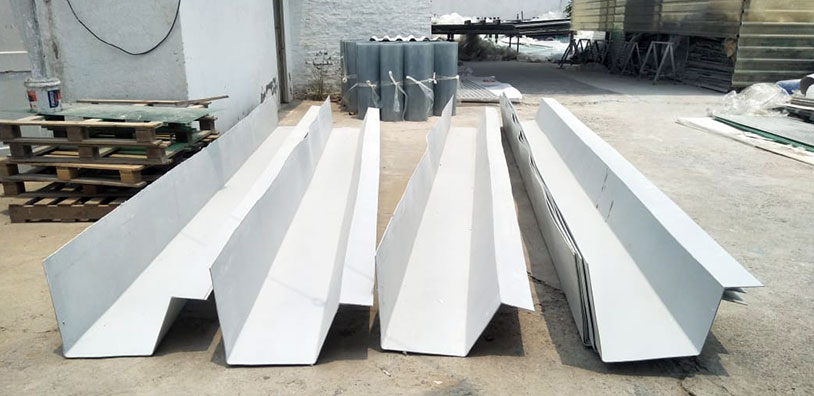

FRP Gutters can be made in required shape, sizes and length with other accessories like down take socket, end covers, junction boxes, cross-joints, etc.
FRP Gutters can be made in required shape, sizes and length with other accessories like down take socket, end covers, junction boxes, cross-joints, etc.
FRP rain water Gutter duly installed on the existing MS bracket / support member made of MS angle / flat normally at a distance of 500-750 mm depending on the span has load bearing capacity of 300-500 kgs. Per r. mtr.

“Scope of Work” Supply and sealing of Fiberglass Reinforced Plastic (FRP) Gutter 4mm thick with step jointing of 50mm at site.

“Nomenclature” Supply of 4mm thick FRP Gutter of“Rooffit” brand an ISO-9001 Certified Company to be fabricated using two coats of Isopthalic grade UV stabilized Gel coat as top coating giving Glossy smooth surface on the top to take the extreme of weather and temperature followed by reinforcement of Chopped Strand Mat (CSM) and Woven roving (WR) duly impregnated with unsaturated polyester Isopthalic exterior grade UV stabilized resin to form tough laminate with extra reinforcement of MS strip of size 25 x 3 mm at a distance of 1000 mm c/c starting from one end of the gutter to be embedded with the gutter. The size of each gutter can be provided in 4.0-5.0 meters and color of your choice.
