Light
Medium
3-4 Years
< 676 kg/cm2
Very Limited
6.7/°C x 10-5

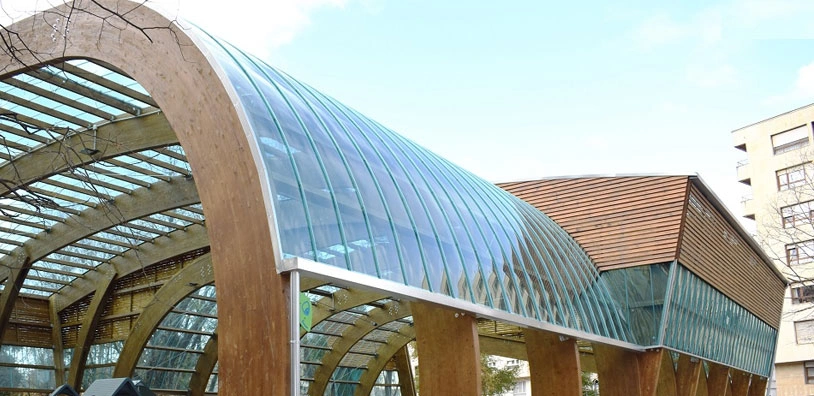

” Rooffit “ Polycarbonate Sheets are an excellent Roof glazing & cladding material with remarkable properties and performance making them one of the ideal choices for natural light transmitting for Roof glazing, Skylights, Pathways, Bus shelters, Shopping Archades, Canopies, Partitions, Greenhouses, Industrial glazing etc. Polycarbonate sheets are a perfectly ideal medium for use in the Industrial, Commercial, Domestic, Govt. & Leisure Segments. RoofFit Solid Polycarbonate Sheets are UV-protected compact panels offering high light transmission of 80-90%, with good impact and flexural strength that make them suitable for areas exposed to weather and foot traffic, such as skylights, canopies, bus shelters and partitions. They carry excellent UV resistance and a V-2 fire rating, and are available as Transparent Plain Compact Sheets and Transparent Plain Embossed Sheets in a range of thicknesses and standard colours. See the Technical Properties and Advantages tabs above for the full set of properties.
| S.No. | Property | UV-Protected Polycarbonate Sheet |
|---|---|---|
| 1. | Light Transmission | 80% – 90% |
| 2. | Impact Strength | 850 – 900 J/m |
| 3. | Tensile Strength | 60 – 70 MPa |
| 4. | Flexural Strength | 90 – 110 MPa |
| 5. | Modulus of Elasticity | 2,100 – 2,400 MPa |
| 6. | Coefficient of Thermal Expansion | 0.065 – 0.070 mm/m°C |
| 7. | Heat Deflection Temperature | 130 – 140°C |
| 8. | Fire Rating | V-2 |
| 9. | UV Resistance | Excellent |
| 10. | Abrasion Resistance | Limited |
| 11. | Chemical Resistance | Good |
| 12. | Transparency | Transparent |
| 13. | Sheet Thickness | Typically 2 – 12 mm |
