Solid Polycarbonate Sheet
Features
- Weight: Light
- Weather Resistant: Medium
- Life: 3-4 Years
- Tensile Strength: < 676 kg/cm2
- Color & Design: Very Limited
- Co-efiicient of Thermal Expansion: 6.7/°C x 10-5
Solid Polycarbonate Sheets Types
This product is available in 3 variations
Transparent Plain Compact Sheets
Transparent Plain Embossed Sheets
Multi-Wall
Sheets

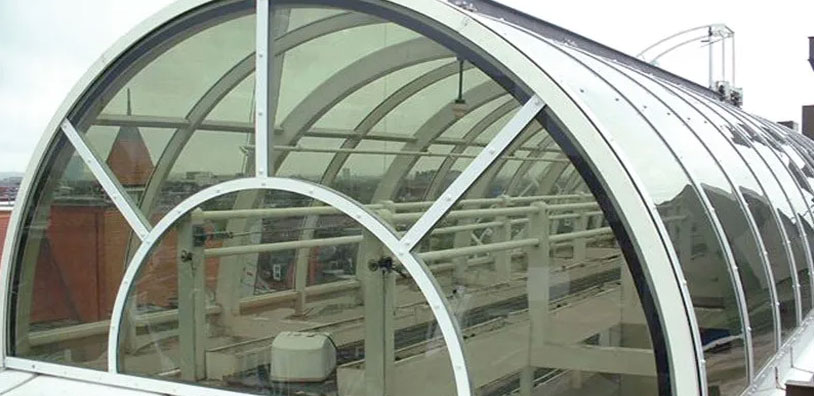

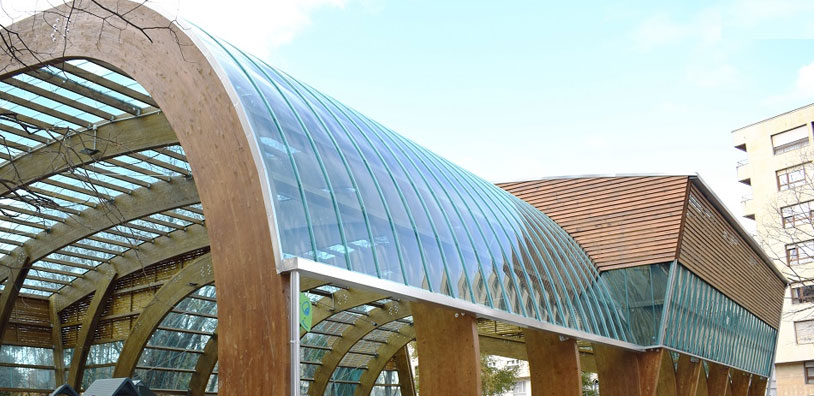

“Rooffit”Polycarbonate Sheets are an excellent Roof glazing & cladding material with remarkable properties and performance making them one of the ideal choices for natural light transmitting for Roof glazing, Skylights, Pathways, Bus shelters, Shopping Archades, Canopies, Partitions, Greenhouses, Industrial glazing etc. Polycarbonate sheets are a perfectly ideal medium for use in the Industrial, Commercial, Domestic, Govt. & Leisure Segments.
Industrial Roofing- Parking Area
- Garages and Verandahs
- Porches & Walkways
- Partition and Window Glazing
- Domes and Canopies
- Stadium
| S.No. | Description | Plycarbonate Sheet | FRP Sheet | Acrylic Sheet |
|---|---|---|---|---|
| 1. | Shatter Resistance | No | Yes | No |
| 2. | Impact Resistance | Medium | Very High | Low |
| 3. | Light Diffusion | Glaring | Excellent | Glaring |
| 4. | Corrosion Resistance | Good | Excellent | Poor |
| 5. | Thermal Insulation | Poor | Excellent | Poor |
| 6. | Maintenance | Periodical Replacement | Free | Frequent Replacement |
| 7. | Weight | Light | Very Light | Light |
| 8. | U/V Anti Aging Film | U/V Optional Anti Aging Film-no | Yes | No |
| 9. | Weather Resistant | Medium | Excellent | Very Poor |
| 10. | Color & Design | Very Limited | Many/Versatile | Very Limited |
| 11. | Life | 3-4 Years | Min. 10 Years | Not Recommended |
| 12. | Cofficient of Expansion & Contraction -vis-à-vis PEB/M.S Structure | Not compatible notable warping & deformation after 1-2 years | Compatible | Very Poor |
| 13. | Tensile Strength | < 676 kg/cm2 | ≥ 1050 kg/cm2 | |
| 14. | Co-efiicient of Thermal Expansion | 6.7/°C x 10-5 | 0.9-1.8/°C x 10-5 | |
| 15. | Fire Performance (Opaque sheets) | Melts like Plastic | Fire Retardant/Optional | Highly Inflammable |
| S.No. | Property | UV-Protected Polycarbonate Sheet |
|---|---|---|
| 1. | Light Transmission | 80% - 90% |
| 2. | Impact Strength | 850 - 900 J/m |
| 3. | Tensile Strength | 60 - 70 MPa |
| 4. | Flexural Strength | 90 - 110 MPa |
| 5. | Modulus of Elasticity | 2,100 - 2,400 MPa |
| 6. | Coefficient of Thermal Expansion | 0.065 - 0.070 mm/m°C |
| 7. | Heat Deflection Temperature | 130 - 140°C |
| 8. | Fire Rating | V-2 |
| 9. | UV Resistance | Excellent |
| 10. | Abrasion Resistance | Limited |
| 11. | Chemical Resistance | Good |
| 12. | Transparency | Transparent |
| 13. | Sheet Thickness | Typically 2 - 12 mm |
Light Weight
Design Flexibility
UV Resistant
High Impact Strength Resistant
Excellent Light Transmission
Rust Proof
High Durability
